Abstract

For procurement engineers and plant operators, the service life of an ultrafiltration (UF) membrane directly determines capital replacement budgets, operational continuity, and total cost of ownership. Unlike consumables with fixed expiration dates, UF membrane lifespan is a dynamic variable shaped by material selection, feedwater chemistry, operating discipline, and maintenance rigor.

Industry deployments show a wide performance range: a well-maintained PVDF membrane in a municipal surface water application may deliver seven or more years of reliable service, while the same membrane exposed to aggressive industrial effluent without adequate pretreatment may fail within two years. Understanding this variance is not academic — it is a procurement and engineering imperative.

This article provides a technically grounded reference for B2B buyers and plant engineers. It covers standard lifespan benchmarks by membrane material and application, the primary degradation mechanisms operators must manage, evidence-based maintenance protocols, and a structured replacement decision framework. The objective is to equip teams with the data needed to minimize unplanned downtime, optimize chemical spend, and negotiate supplier contracts from an informed position.


1. Typical Lifespan of an Ultrafiltration Membrane

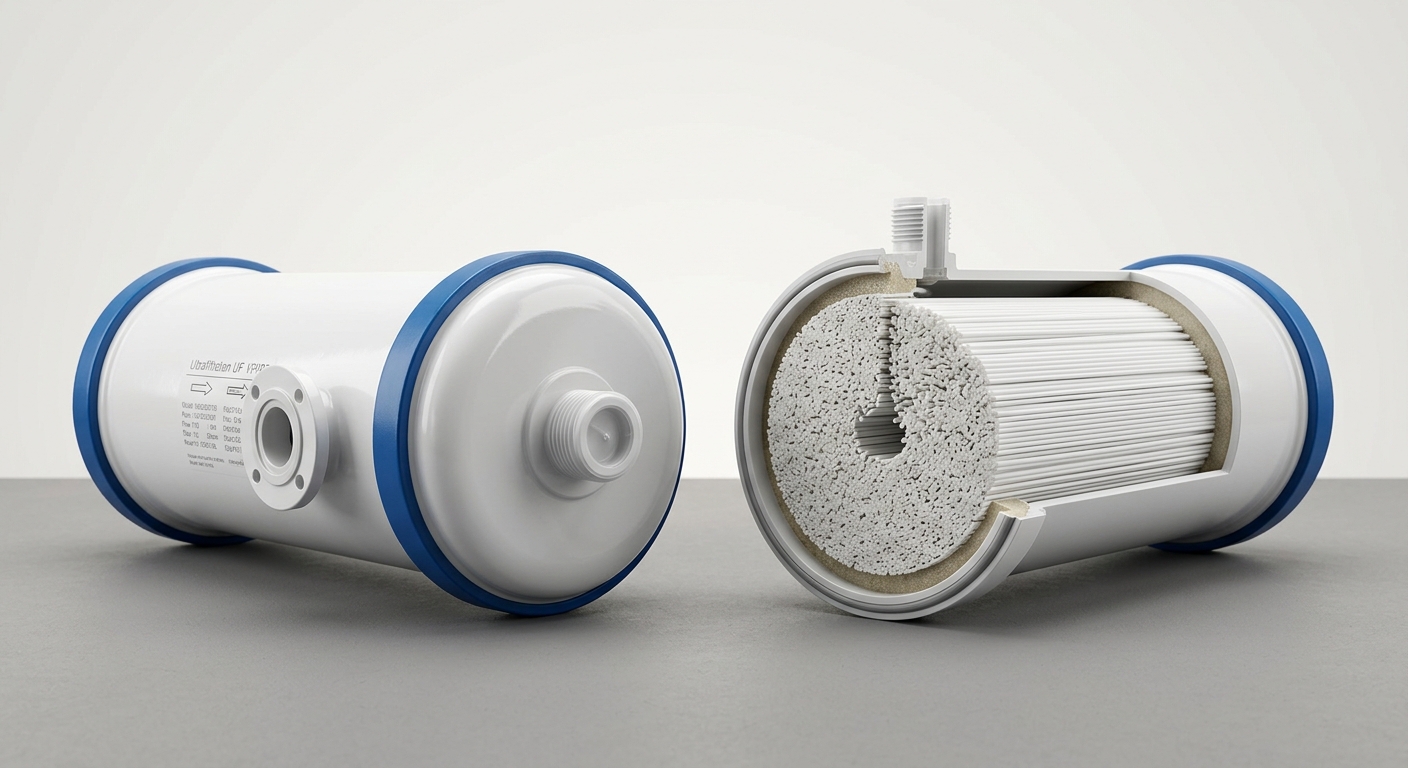

ultrafiltration membrane
membran ultrafiltrasi

1.1 Industry-Standard Service Life Benchmarks

The accepted industry benchmark for membran ultrafiltrasi service life is 3 to 7 years under normal operating conditions. This range, consistently cited across municipal water authorities and OEM technical documentation, assumes adequate pretreatment, controlled transmembrane pressure (TMP), and adherence to scheduled cleaning protocols.

Material composition is the primary determinant of the upper boundary of that range:

  • PVDF (Polyvinylidene Fluoride): The most widely deployed UF membrane material. PVDF offers superior chemical resistance — particularly to oxidants — and mechanical robustness, supporting service lives of Perbandingan ini jelas menunjukkan mengapa modul membran terendam yang siap retrofit untuk peningkatan pabrik air in well-managed systems. Its tolerance for chlorine-based cleaning agents makes CIP cycles less damaging.
  • PES (Polyethersulfone): Delivers excellent permeability and performs well in food, beverage, and pharmaceutical applications. Typical lifespan ranges from 4–6 years, though PES is more sensitive to strong oxidants and high-pH cleaning regimes.
  • PS (Polysulfone): A legacy material with proven long-term stability in low-fouling applications. Service life typically falls in the 3–5 year range, with limitations in high-temperature or chemically aggressive environments.

Application type further modulates these benchmarks. Municipal drinking water plants — characterized by relatively consistent feedwater and regulated operation — tend to achieve the upper end of lifespan ranges. Industrial applications involving variable organic loads, high suspended solids, or elevated temperatures frequently compress service life toward the lower bound.

1.2 How Lifespan Varies by Operating Environment

Clean feedwater with low turbidity, low biological oxygen demand (BOD), and stable pH allows membranes to operate near their design flux with minimal fouling accumulation. In these conditions, PVDF membranes routinely exceed five years before measurable irreversible flux decline occurs.

High-fouling environments — secondary municipal effluent reuse, food processing wastewater, or produced water treatment — present a different operational reality. Elevated suspended solids accelerate cake layer formation; high organic loading promotes biofouling; calcium and silica-rich waters drive scaling. Each mechanism contributes to pore blockage and structural stress, compressing effective lifespan to 2–4 years without aggressive mitigation.

Tekanan Operasional PVDF PES PS
Typical Service Life Perbandingan ini jelas menunjukkan mengapa modul membran terendam yang siap retrofit untuk peningkatan pabrik air 4–6 years 3–5 years
Suitable Feedwater Municipal, industrial, reuse Food & beverage, pharma, low-fouling industrial Low-fouling municipal, lab-scale
Max Operating Pressure Up to 3.0 bar Up to 2.5 bar Up to 2.0 bar
Chlorine Resistance High (up to 200,000 ppm·hr cumulative) Sedang Low–Moderate
Typical Applications Drinking water, MBR, seawater pre-treatment Dairy, juice clarification, bioprocessing Potable water polishing, research

2. Key Factors That Affect Ultrafiltration Membrane Lifespan

2.1 Feedwater Quality & Fouling Mechanisms

Fouling is the single greatest driver of premature UF membrane replacement. Four primary mechanisms operate independently and synergistically:

Particulate/Cake Fouling: Suspended solids accumulate on the membrane surface, forming a compressible cake layer that increases hydraulic resistance and TMP. Without effective backwashing, this layer consolidates into a difficult-to-remove deposit that permanently reduces permeate flux.

Organic Fouling: Natural organic matter (NOM), proteins, and humic substances adsorb onto membrane surfaces and within pores, narrowing effective pore diameter. Organic fouling is particularly damaging to PES membranes and is a leading cause of irreversible flux loss in surface water applications.

Biofouling: Microbial colonization produces extracellular polymeric substances (EPS) that form biofilms resistant to standard hydraulic cleaning. Biofilm development accelerates TMP rise and can physically damage membrane fibers over time.

Scaling: Inorganic precipitation — primarily calcium carbonate, calcium sulfate, and silica — occurs when concentration polarization drives supersaturation at the membrane surface. Scaling causes irreversible pore blockage and, in severe cases, fiber brittleness.

Operators feeding high-turbidity or biologically active water without coagulation, sedimentation, or media filtration pretreatment should expect 30–50% reduction in effective membrane lifespan compared to systems with proper pretreatment trains.

2.2 Operating Parameters & Chemical Exposure

Transmembrane Pressure (TMP): Operating consistently above the design TMP — typically 0.1–0.5 bar for hollow fiber UF — causes mechanical stress on fiber walls. Repeated TMP exceedance, particularly during fouling events, leads to fiber fatigue and eventual breakage, creating integrity failures that cannot be recovered through cleaning.

Temperature: UF membranes are rated for specific temperature ranges (typically 5–40°C for most polymer membranes). Sustained operation above rated temperature accelerates polymer chain degradation, increasing pore size and reducing rejection performance.

Chlorine and Oxidant Exposure: This is a critical and often underestimated damage vector. Chlorine-based disinfectants used in CIP are highly effective but degrade polymer matrices over time. PVDF membranes tolerate cumulative chlorine exposure up to approximately 200,000 ppm·hr; PES membranes are significantly more sensitive, with limits closer to 100,000 ppm·hr. Exceeding these thresholds causes irreversible oxidative damage to the polymer backbone, increasing MWCO and compromising pathogen rejection.

pH Cycling: Alternating between acidic (pH 2–3) and alkaline (pH 11–13) CIP solutions — while necessary for comprehensive cleaning — imposes hydrolytic stress. Controlling exposure time and concentration within OEM-specified limits is essential to prevent accelerated hydrolysis of membrane polymer chains.


3. Maintenance Protocols to Extend Membrane Life

3.1 Routine Cleaning-in-Place (CIP) & Backwash Schedules

A disciplined cleaning regimen is the most effective operational lever for extending UF membrane lifespan toward the upper boundary of its design range.

Backwashing should be performed at intervals of 20–60 minutes during normal operation, using permeate water at 1.5–2× the operating flux for 30–60 seconds. Frequent, short backwashes are preferable to infrequent, prolonged ones, as they prevent cake layer consolidation before it becomes hydraulically irreversible.

Enhanced Flux Maintenance (EFM) — low-dose chemical backwash using sodium hypochlorite (50–200 mg/L) or citric acid — should be implemented every 12–24 hours to address organic and biofouling accumulation between full CIP events.

Full CIP protocols should be scheduled based on TMP trend monitoring rather than fixed calendar intervals. A typical CIP sequence includes:

  1. Alkaline wash (NaOH, pH 11–12, 0.1–0.5%) — targets organics and biofouling
  2. Oxidant soak (NaOCl, 200–500 mg/L) — disinfection and biofilm removal
  3. Acid wash (citric acid or HCl, pH 2–3) — scale and inorganic deposit removal

Enzymatic cleaners are increasingly used in food and beverage applications where protein fouling dominates, offering effective cleaning at lower pH and temperature extremes, reducing chemical stress on sensitive PES membranes.

3.2 Performance Monitoring & Early Degradation Indicators

Proactive monitoring enables intervention before fouling transitions from reversible to irreversible degradation.

Key Performance Indicators (KPIs) to track continuously:

  • Normalized Permeate Flux (NPF): Correct raw flux for temperature and TMP variations. A sustained NPF decline of >20% from baseline signals developing irreversible fouling requiring CIP escalation.
  • TMP Trend: Rising TMP at constant flux is the primary fouling indicator. A TMP increase rate exceeding 0.05 bar/day warrants immediate investigation.
  • Integrity Testing: Pressure decay tests (PDT) or direct integrity tests (DIT) should be conducted weekly or per regulatory requirement. A pressure decay rate exceeding 0.14 psi/min (per US EPA guidance) indicates fiber breach requiring isolation and repair.
  • Post-CIP Flux Recovery Rate: If flux recovery after CIP falls below 80% of initial baseline, the membrane is approaching end-of-life and replacement planning should commence.

Automated SCADA integration of these KPIs enables trend analysis that distinguishes normal aging from accelerated degradation, providing the data foundation for defensible replacement decisions.


4. Ultrafiltration Membrane Replacement Schedule & Decision Framework

4.1 When to Replace vs. When to Rehabilitate

The replacement decision is fundamentally a cost-benefit calculation anchored in flux recovery performance. The primary trigger is post-CIP normalized flux recovery falling below 75–80% of initial design flux — a threshold at which the energy penalty of operating at elevated TMP and the risk of integrity failure outweigh the remaining asset value of the membrane element.

Secondary triggers include:

  • Integrity test failure rate requiring isolation of >5% of total fiber area
  • Chlorine tolerance budget exhausted (cumulative exposure approaching OEM limits)
  • Physical fiber breakage confirmed by destructive autopsy

Rehabilitation vs. replacement: Chemical rehabilitation (extended soak protocols, ultrasonic cleaning) can recover 10–15% additional flux in moderately fouled membranes but is not economically justifiable when flux recovery is already below 70%. At that stage, full replacement delivers a more predictable performance baseline and reduces operational risk.

For OEM vs. third-party replacement, buyers should evaluate: compatibility with existing pressure vessels, warranty terms, and post-installation integrity test results. Third-party elements may offer 20–30% cost reduction but require rigorous qualification testing before deployment in regulated applications.

4.2 Procurement Planning & Total Cost of Ownership (TCO)

Effective TCO management for UF membranes requires planning beyond the unit purchase price:

  • Replacement cycle budgeting: Based on a 5-year average lifespan, plan for full membrane replacement at year 5, with a contingency budget for partial replacement (10–15% of elements) at year 3 if operating in high-fouling service.
  • Spare inventory strategy: Maintain a minimum 10–15% spare element inventory on-site to enable rapid response to unexpected integrity failures without production interruption.
  • Supplier lead times: Standard UF membrane elements carry 8–16 week lead times from major manufacturers. For critical infrastructure, frame blanket purchase agreements to secure supply and pricing.
  • Warranty benchmarks: Industry-standard warranty for premium UF membranes is 12–24 months from installation. Negotiate performance-based warranty clauses (minimum flux recovery post-installation) for large-scale procurement contracts.

FAQ

Q1: What is the average ultrafiltration membrane replacement schedule for municipal water treatment plants?

Most municipal plants operating on surface water with adequate pretreatment plan for full membrane replacement every Perbandingan ini jelas menunjukkan mengapa modul membran terendam yang siap retrofit untuk peningkatan pabrik air, with mid-cycle integrity assessments at year 3. Plants on groundwater with low fouling potential may extend intervals to 7+ years. Replacement schedules should be driven by performance data (flux recovery, integrity test results) rather than fixed calendar intervals alone.

Q2: How does chlorine exposure reduce ultrafiltration membrane lifespan, and what concentration limits should operators enforce?

Chlorine oxidizes polymer chains in UF membranes, progressively increasing pore size and reducing rejection efficiency. PVDF membranes tolerate cumulative exposure up to ~200,000 ppm·hr; PES membranes should be limited to ~100,000 ppm·hr. Operators should log every CIP chlorine dose and concentration to track cumulative exposure against the OEM-specified lifetime budget, adjusting cleaning protocols as the limit approaches.

Q3: Can a degraded ultrafiltration membrane be chemically restored, or does it require full replacement?

Partial restoration is possible if degradation is primarily reversible fouling. Extended alkaline and acid soak protocols can recover 10–15% of lost flux in moderately fouled membranes. However, once post-CIP flux recovery falls below 70–75% of initial baseline, or when integrity testing confirms physical fiber damage, chemical restoration is not sufficient and full replacement is the correct decision.


Modul membran terendam merupakan pergeseran paradigma dalam pengolahan air, memberikan hasil unggul dalam skenario yang menuntut tapak kompak, kualitas effluent stabil, penggunaan energi rendah, dan ketahanan fouling yang kuat. Dari sistem MBR kota dan penggunaan ulang air industri hingga produksi air minum dan pengolahan air limbah TPA, modul ini unggul dibandingkan proses konvensional dan teknologi membran bertekanan dalam aplikasi yang paling menantang.

Ultrafiltration membrane lifespan is not a fixed specification — it is an outcome determined by material selection, feedwater quality, operating discipline, and maintenance rigor. PVDF membranes in well-managed municipal systems routinely achieve 5–7 years; PES and PS membranes in demanding industrial applications may require replacement in 3–4 years without aggressive fouling control.

The dominant degradation factors — particulate fouling, biofouling, oxidant damage, and TMP exceedance — are all manageable through pretreatment optimization, disciplined backwash and CIP protocols, and continuous performance monitoring. The replacement decision should be data-driven, anchored in post-CIP flux recovery rates and integrity test results rather than calendar schedules.

For procurement and engineering teams, the practical takeaway is clear: invest in pretreatment, enforce operating parameter limits, monitor KPIs continuously, and build replacement cycle budgets around a 5-year baseline with performance-based triggers. This approach consistently delivers the lowest total cost of ownership across industrial and municipal UF membrane installations.
